AXER'S MOST ROBUST TREE SHEAR

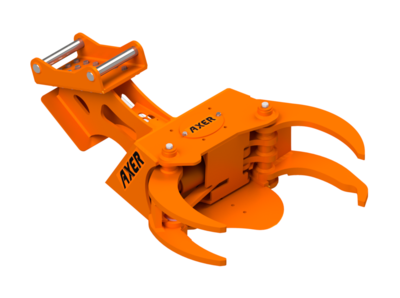

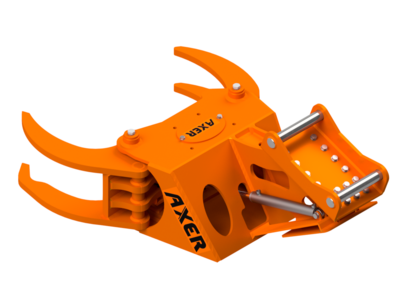

The Axer 800HD tree shear is the most powerful and robust choice in the Axer product family.
This model can be installed into excavators over 12 tons of weight. The tree shear is designed for the biggest and most challenging trees in European forests. Its thick and robust wearing plate frame with extra reinforcements, combined with sturdy grapples makes sure that even when installed into 30 ton excavators, it is s comfortable choice. The Axer 800 HD is so powerful that even the biggest and most resilient trees will cut nice and easy.
The 20mm thick, hardened cutting blade and powerful grip, along with optimized geometries that utilise a cutting cylinder of our own design and manufacturing, ensures optimal and solid performance, even for the toughest challenges. The Axer 800HD tree shear is available in 2 models: the K model with a bolted cutting blade and the patented L model with a retractable cutting blade which allows loading, weeding and normal grapple use for the same machine. Both tree shear models have a hardened cutting blade which can be detached and replaced.
The Axer 800HD tree shear is a robust powerhouse for mid and heavy excavators, manufactured using only the finest materials. See accessories here ›
TECHNICAL SPECIFICATIONS
| Mass: | 770 kg |
| Max. oil pressure: | 300 bar |
| Recommended minimum oil flow: | 100 L/min |
| Max. cutting capacity: | 400 mm |
| Grapple opening: | 1000 mm |
| Mounting platform: | excavator |
| Mounting platform weight recommendation: | over 12 metric tons |
CONSTRUCTION DETAILS
| Frame material: | Wearing plate (Hardox/ Dillidur) |
| Grapple material: | Wearing plate (Hardox/ Dillidur) |
| Pin material: | Tempering steel |
| Cutting blade: |
Hardened steel |
| Available excavator couplings: | All possible |
> 12 t
280 mm
