TREE SHEAR FOR EXCAVATORS OVER 6 TONS OF WEIGHT

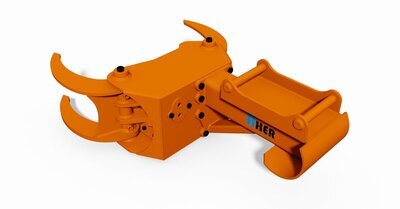

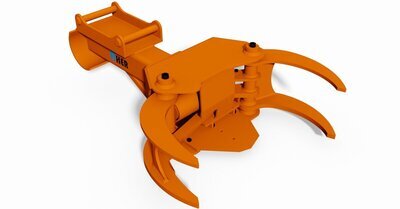

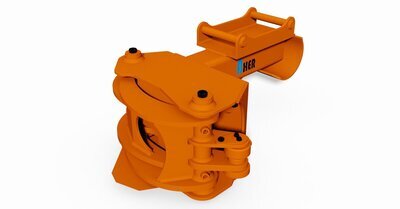

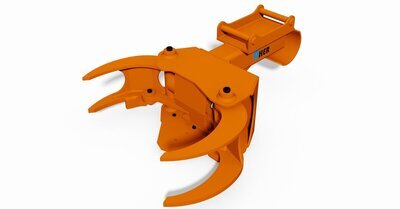

The Axer 540 tree shear is a good option for excavators above 6 tons weight.
The tree shear's robust box shaped construction, big cutting capacity, 15mm thick hardened cutting blade and optimized geometries, using cutting cylinder that is our own design and manufacture, has allowed us to manufacture a tree shear for mini and middleweight excavators that reaches over 250mm cutting capacity.

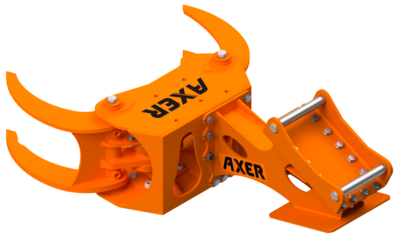

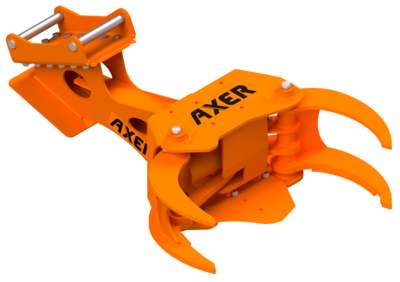

The Axer 540 tree shear is available in 2 models: the K model with a bolted cutting blade and the patented L model with a retractable cutting blade, which allows loading, weeding, and normal grapple use for the same machine. Both tree shear models have hardened cutting blade which can be detached and replaced.
The Axer 540 tree shear is a robust and powerful solution for mini and middleweight excavators which is manufactured using only the finest materials.
TECHNICAL SPECIFICATIONS
| Mass: | 380 kg |
| Max. oil pressure: | 300 bar |
| Recommended minimum oil flow: | 75 L/min |
| Max. cutting capacity: | 280 mm |
| Grapple opening: | 1000 mm |
| Mounting platform: | Excavator |
| Mounting platform weight recommendation: | less than 12 metric tons |
CONSTRUCTION DETAILS
| Frame material: | Wearing plate (Hardox/ Dillidur) |
| Grapple material: | Wearing plate (Hardox/ Dillidur) |
| Pin material: | Tempering steel |
| Cutting blade: |
Hardened steel |
| Available excavator couplings: | All possible |
< 9 t
250 mm
